CRANE’S
- HAS
BEEN
MANUFACTURING
-
World's Finest. Exact restoration
Big Block valve covers since 1989 -
FROM CRANE FACTORY TYPE
TOOLING. -- with FACTORY PROJECTION WELDED DRIPPERS -
These are the only
Restoration Big Block Chevy Valve Covers made in the U.S.A. - all
others are China, Taiwan, Malaysia, Singapore or one or more of the
above, and totally non-fitting Incorrect dog crap.
These are the only one's "Made in
U.S.A.
CRANE’S
-
HAS
BEEN
MANUFACTURING
ALL
"
14"
TYPES
-OF
BIG
BLOCK
VALVE
COVERS
SINCE
1989.
.... as
seen on
All the National Level show winning
Camaros and Chevelles, and Nova's as well as Corvettes.
Chevy VetteFest Nationals,
Chris Daniels Restorations, "Bloomington Gold" and NCRS top flight cars and Camaro and Chevelle
Nationals show cars !! Exacting in all details - even
with the
draw lines , the projection welds that pop-up from the
drip-rails and correct stands and wire clips.
FROM CRANE
FACTORY TYPE
TOOLING. -- with FACTORY PROJECTION WELDED DRIPPERS
FROM 1965-74 CALL FOR YEAR AND APPLICATION. - CORVETTE
CAMARO, CHEVELLE, PASSENGER CARS.
VALVE COVER 427
RETAINERS AVAILABLE IN QUANTITY...100 ‘s AVAILABLE ..CALL...fasteners,
grommets, spark plug clips.
ORDER LINE:::::::::::::::::::: :858-864-2883
:::::::::::::::::::::::::: FAX::::::::::::::::::::::: 858-514-8398
BIG BLOCK-----TOLL FREE 888-427-VETT
MANY
NEW PHOTOS - at bottom of page
Below is a 1971 L.H fully detailed.
all
photos are © and property of Crane's Corvettes.
Below is a close up of
the Exact 1967-69 "CAMARO" Big Block valve cover with Correct
Brackets/flanges/nub. NOTE:
THE TALL BENT BRACKET IS MOVED FORWARD OF THE BOLT HOLE FOR FIREWALL/wiper
motor CLEARANCE.- Correct according to the National Camaro
Judges. There are 3 versions on the clip locations depending on the
year.
Below is a close up of
the Exact 1968-69 CORVETTE Big Block valve cover with Correct
Brackets/flanges/nub.
- BASE ENGINE HAS NO DRIPPERS-ON PASS.
CARS.. ..BUT
*HI-PERF ENGINES HAVE DRIPPERS--
- *SPECIAL HI-PERF HAS DRIPPERS
etc.

THERE ARE :
4 DIFFERENT POWER BRAKE CORNER
SHAPES:
PICTURED ABOVE LEFT TO RIGHT + the 68-69 Camaro cover on
"far right."
w/tall bent bracket moved forward of the bolt hole. "Camaro"
1*
1965-67 & 68E CORVETTE AND
PASS. ; ALL—SMASHED/CRUNCHED CORNER
power brake shape
2
& 3 1968-69 ALL; 60
DEGREE RAKE WITH BUMP IN CORNER
4
*1970-74 ALL. –RAKED EVENLY WITH
SMALL CREASE AT BOTTOM.
THE VALVE COVER
ON THE RIGHT IS CAMARO
1968-69 (same power brake
shape as #3 above)
WITH BRKT MOVED FORWARD OF THE BOLT HOLE FOR FIREWALL CLEARANCE. =

SAMPLE PHOTOS BELOW THIS PART NUMBER CHART
NOTE: VETTES
All Corvettes, Camaros, Chevelles etc. HAD POWER BRAKE VALVE COVERS
with or without the PB option.
all CHROME"
COVERS ARE:
$490
pr. OR LH=
$250
RH= $250
Most "" PAINTED"" Type
are: $360 pr.
OR
LH
= $185 RH= $185
1966 AIR COND DENT ,R.H. SEPT.65-JAN-1966======= ADD $50
1967 A.I.R. -SMOG --BRKT RH
--INSTALLED K-19 =====ADD $50
ORDER BY PART #
APPLICATION P= pair
--------====CORVETTE
& CHEVELLE & PASS. CARS.-Applications-------------------
#V65-6CP===
396-427 CHROME-
Z-16 CHEVELLE
AND 66 ALL CHEVELLE396/427
AND PASSENGER CAR 396/427-UNIQUE POWERBRAKE
CORNER SHAPED-SIZE OF A U.S. SILVER DOLLAR.
#V66P-AC =PAIR PB. DRIPPERS W/AC DENT IN RH
COVER.-OCT.65-JAN.66.-- BARE-TO PAINT-
#V65-6P = PAIR--CORVETTE 1965-66 BIG BLOCK PB
W/ DRIPPERS -BARE TO PAINT-
#V67P===PAIR--BB , C orvette
’67 , L-88 ALLW/
TALL BENT BRKT, -BARETO PAINT-
#V67-8P==V67-8CP=
CHROME=1967
& EARLY '68 TO JAN. 1968. VETTE,
& BB FULL SIZE.; & 1967 L-89 CORVETTE, &
1967 -68E C.O.P.O & L-89 & ZL-1,
CAMARO-NICKEY & BILL THOMAS, MOTION CHEVELLE,
CAMARO. etc.
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
V68-9P
= JAN.'68 AND ON THRU ALL 1969, BB CHROME CORVETTE AND PASS. CAR,
CHEVELLE
V68-9U ===1968-69 BARE-TO PAINT—PASS. FULL SIZE CHEVROLET
V70-71P== CHROME—1970,AND EARLY ‘71 CHROME TO CAR #4,000
Corvette, Chevelle, etc, &
LS_6 –SEE PART
#V71P=C
V71P ==- BARE-TO PAINT--((PUSH IN OIL PLUG) AFTER S/N 4,000 AND
LATER………
V71P-C-- = CHROME
-EARLY ‘71 TO CAR #4,000 VETTE- ((PUSH IN OIL PLUG)
# V72-74P=NEW
$350/PR=WITH 4 INDIVIDUAL
CLIPS INSTALLED
ON EXHAUST MANIFOLD SIDE.—BARE-TO
PAINT -VETTE AND PASS. -ALL CHEVY’s
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^CAMARO
Applications^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
W/ TALL BENT BRKT MOVED TO FORWARD LOCATION
.USED ON ALL C.O.P.O & ZL-1 & L-89
CAMAROS/ NOVA-NICKEY
AND BILL THOMAS, CAMARO/NOVA.
V67P-CC =1967 CAMARO -
CHROME
V67P-CU = 1967 CAMARO -UN-CHROMED
FOR 325 AND 360HP CAMAROS
V68P-CC = 1968 CAMARO - CHROME
-
V68P-CU = 1968 CAMARO -NON
CHROME FOR 325 AND 350HP
V69P-CC = 1969 CAMARO
CHROME- DRIVER SIDE HAS ONE CLIP ON EXH. SIDE FOR TEMP
WIRE.
V69P-CU = 1969 CAMARO NON
CHROME
P =
PAIR
C= CHROME
===^^CAMARO^^^^^^^^==PICTURED
BELOW===============
click here: Used
Big Block Valve Covers
Also: 283
& 327 originals available steel &finned aluminum..call
800-597-4132.

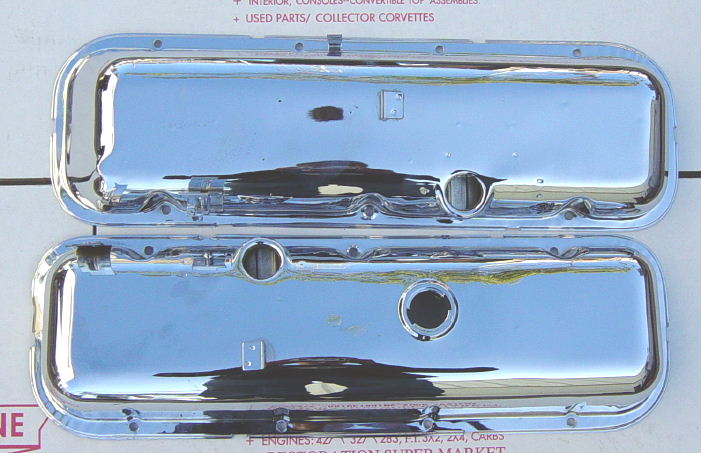

Below are
photos of the 1971 454 valve covers and all their features.

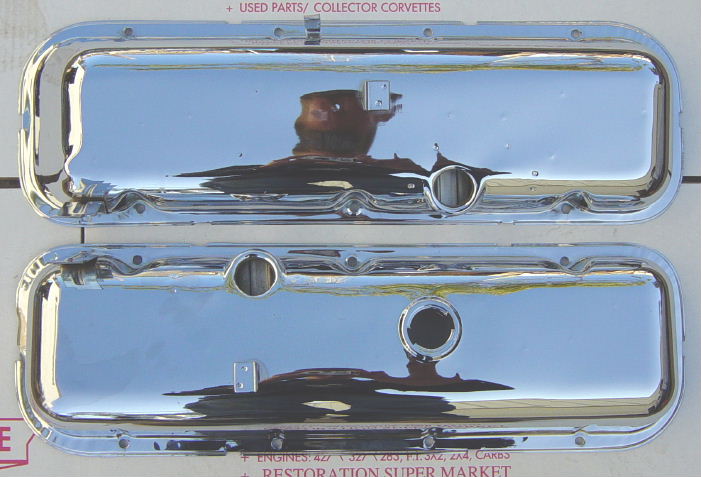

Below is a pair of 1968Late
(jan. 68) thru all -1969 part number =
V68-9P Corvette - Chevelle- Nova & Pass.
cars. COPO & ZL-1
ORDER LINE::::::::::::::::::: ::
PH: 800-597-4132
"NEW"
FRAMEWORLD = toll free
888-427-8388
:::::::::::::::::::::::::: FAX:::::::::::::::::::::::
858-514-8398
Below
are 1972-1974 454 valve covers
w/the 4
individual spark plug wire clips on the side.
+
"NEW:" USED
PARTS
toll free: (858) 514-8388
CRANE
MANUFACTURING INC.--
600
Ton press == "MINI -
TERMINATOR "
MANUFACTURING CENTER-
FOR THE MOST EXACT
REPLICA
PARTS FOR YOUR prized CORVETTE! + Used parts 858-864-2883
|
